Anilox Cleaners

Anilox Cleaners

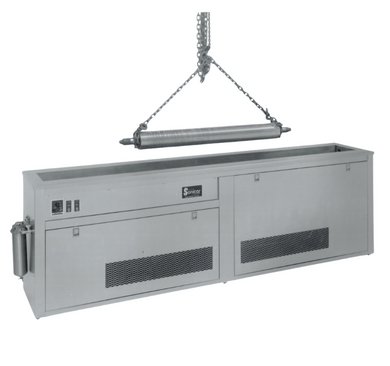

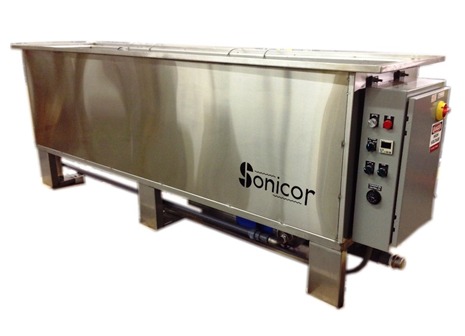

Sonicor “CY” Series Ultrasonic Anilox Cleaning Systems with Heat and Filtration Systems

AniloxCleaningSystem
The Sonicor Ultrasonic Anilox Cleaning System is specifically designed to restore cell volume, without damaging the delicate cell walls on high screen count anilox rolls. The Sonicor system is equally effective on chrome plated cylinders, providing superior cleaning, in less time than any other available roll cleaning technology.
The cleaning process is simple. The contaminated cylinder is immersed in the heated solution in the ultrasonic cleaning tank. The high frequency ultrasonic sound waves produce an intense microscopic scrubbing action that penetrates into the cells of the cylinder surface completely removing residual inks, along with any other contaminants.
The Sonicor system features the superior performance and reliability of Sonicor “BandScanner” sweep frequency ultrasonics, stainless steel immersion heaters, a circulating pump/filter system, and a heavy duty cylinder rotation system.

Critical process time, temperature, and ultrasonic intensity are all carefully controlled to optimize cleaning and ensure process consistency.

Aniloxtable

Contact factory for additional standard or custom sizes

Standard Features:

  • All stainless tank fabrication
  • Hard Chrome plated Immersibles
  • Stainless immersion heaters
  • Thermal insulation
  • Low liquid level protection

Available Options:

  • Non-standard input power configurations
  • Digital temperature controllers
  • Auto-reset digital cycle timer

Replace/Upgrade the ultrasonics in your existing ultrasonic anilox cleaning system

Anilox2
After years of service, replacing the ultrasonic transducers and generators in your Sonicor CY series anilox cleaning system is a cost saving alternative to replacing the entire system. Sonicor offers drop-in replacement ultrasonic packages for all of our roll cleaning systems. These replacement/upgrade packages are easily installed, and provide the latest in sweep frequency ultrasonic technology and controls, to ensure safe effective cleaning of even the most delicate anilox surface.
