Immersible Transducers

Immersible Transducers

For Use With “Bandscanner” Ultrasonic Generators

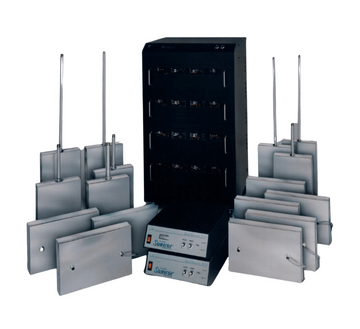

Sonicor Immersible Ultrasonic Transducers

Sonicor Immersible Ultrasonic Transducers

To introduce Sonicor ultrasonic cleaning power into an existing process tank, or on large tanks where installation of transducers directly onto the process tank is not practical, Sonicor immersible transducers are the answer.

Available in multiple mounting configurations, Sonicor immersible transducers make conversion of any tank, into an ultrasonic cleaning tank, simple and cost-effective. The modular concept of the immersible transducers, allows you to start a lower ultrasonic power level, and increase with additional immersible transducers, as production needs change.

Immersible Mounting Configurations

Sonicor Immersible transducers are offered in a variety of mounting configurations to address both new equipment and retrofits into existing process tanks:

  • IB – Bulkhead Mounting fitting(s) with an 8 foot coaxial RF cable/connector assembly protrude from the immersible and pass directly through the bottom or sidewall of tank, The coaxial connector(s) correspond to the output connector(s) on the ultrasonic generator. All IB series immersible transducers are sold at the prices shown above.
  • IS – IS series immersible transducers are provided complete with a 4 foot stainless steel/teflon hose to route the transducer RF cable safely above the liquid level of the tank. An 8-foot RF cable with the appropriate generator connector protrudes from the end of the stainless steel/Teflon hose, to complete the connection from the immersible transducer to the ultrasonic generator.
  • IR – IR series immersible transducers are provided with an 18” rigid stainless steel pipe assembly to route the transducer RF cable safely above the liquid level of the tank. An 8-foot RF cable with the appropriate generator connector is provided to complete the connection from the immersible transducer, to the ultrasonic generator.

Fitting Locations

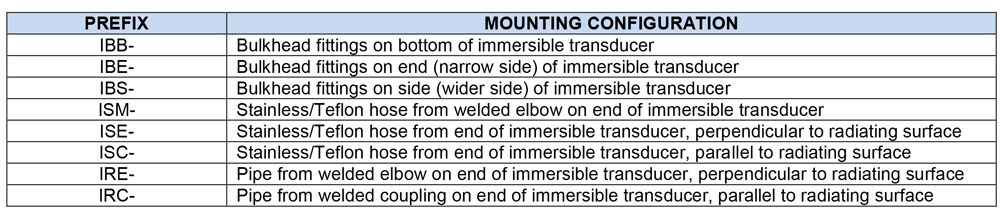

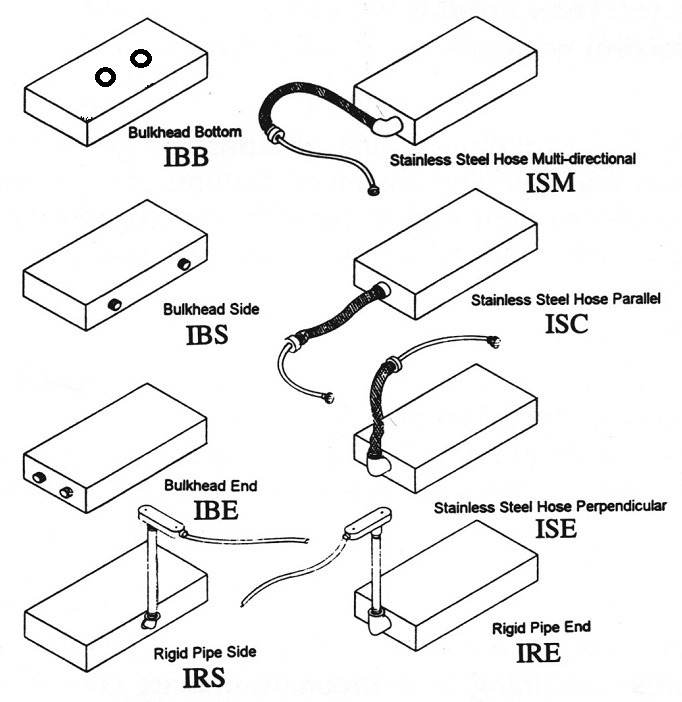

The third letter in each immersible transducer model no. Prefix indicates the type and position of the fitting(s) that are welded on the immersible body. To complete the model no., select the appropriate prefix from the chart below, and insert it into the immersible transducer model shown above (*):

NOTES:

    1. Consult factory for non-standard immersible transducer sizes & mounting configurations.
    2. All immersible transducers and generators listed are configured for operation at 40Khz, as indicated by the frequency designator “4” in each model number. Consult factory for prices.
    3. All listed items are available for 27Khz operation, (use frequency designator “2” in model numbers, when ordering).Consult factory for price information

ImmersibleUltrasonicTransducersdiag
