Aqueous Ultrasonic Clean/Rinse/Dry Self-Contained Console Systems

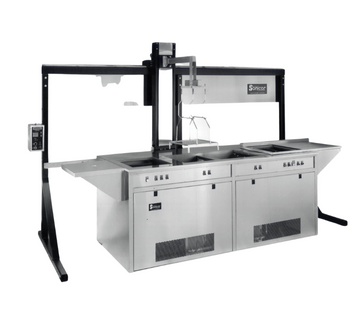

Sonicor “CPS” series consoles offer a complete parts cleaning process line, housed in a rugged, all stainless cabinet/countertop assembly. Standard consoles are available in either three stage CPS3, (ultrasonic clean/rinse/dry), or four stage CPS4,(ultrasonic clean/rinse/rinse/dry) models.
All CPS series consoles are equipped with the following standard features:
Sonicor “BandScanner” sweep frequency ultrasonics
Spray-over immersion on rinse tanks
Two stage counter flowing rinse (CPS4 only)
Auto-reset cycle timers on ultrasonics & dryer
Stainless drip diverters between process tanks
Single point electrical supply connection
Low level protection for all heaters & ultrasonics
Stainless, front access fill & drain valves
All Stainless cabinet, countertop, tanks & supply plumbing
Adjustable overflow on rinse tanks
Filter system on stage 1 ultrasonic cleaning tank
Digital temperature controls on all process tanks
Stainless lift-off cover on dryer
Single point drain plumbing connection
CPVC drain plumbing
CPS series consoles are available in four tank size configurations.
Sonicor Parts Baskets
Sonicor stainless parts baskets are specially designed for maximized cleaning efficiency and productivity in the Sonicor “CPS” process line. Our standard baskets are available in two pickup configurations. The “BP” series parts baskets are designed for ease of handling with a manually operated system. The “BA” series baskets are designed for use with “CPS” consoles operated with the Sonicor “RCT” series, automation/process control system. When ordering parts baskets for an automated system, a three stage system will require five (5) parts baskets, and a four stage system will require six (6) parts baskets, to maximize the productivity of the RCT automation/process control system.
Sonicor Basket Selector
Sonicor 2412 Hospital Console set – to Wash, Rinse & Dry instruments in the surgical suite.
Sonicor Ultrasonic Cleaning Consoles offer an attractive, space-saving alternative to industrial parts cleaning systems, in installations like hospitals and laboratories, where equipment appearance and cleanability are an important concern. With polished stainless cabinetry, ergonomic operator control panels, and a wide range of features and options, these self-contained systems offer the rugged reliability and performance that has made Sonicor the preferred ultrasonic cleaning consoles in hospitals, laboratories and clean room facilities, for over forty years
Heavy-duty all stainless construction with easy-access maintenance panels
Drop-in tanks, fabricated with no corner welds
Seamless stainless countertop
Overflow protection plumbed to waste
Sonicor “BandScanner” series, sweep frequency ultrasonic generator
Sonicor high-efficiency piezoelectric transducers
Low liquid level protection for ultrasonics, pumps and heaters
CPVC waste plumbing, with single-point drain connection
Single point electrical supply connection with over-current protection
Thermal insulation on heated models
Adjustable leveling feet
Ergonomic operator control panels
Sonicor Wash, Rinse/Dry console with hydro-air power spray. A standard on Naval Vessels.
Options & Accessories
Automated Parts Handling Systems
Multiple Ultrasonic Operating Frequencies
PLC Control Systems
Mobile Consoles that can be moved around the shop for equipment maintenance, are ideal for pharmaceutical plants and printing shops.
For applications that require low-flashpoint solvents, Sonicor offers console cleaning system that are designed for hazardous environments.
Sonicor “CU” series – Full featured, economical ultrasonic cleaning consoles are available in a wide range of standard sizes.
Sonicor offers cabinet configurations and automation systems for every precision cleaning application.
